The SKYZONE M5F 5.8 GHZ FPV monitor with DVR is a high brightness 5-inch monitor integrated with 5.8Ghz 48 CH SteadyView receiver, the receiver merges two signals into one, avoids image tearing and rolling, make image more stable and clear. The wheel with classic skyzone UI made the goggles easy to use, the monitor support 1cell 18650 battery, easy to switch battery, also support 2-6S Lipo, easy to power on the field.

Built-in Steadyview Receiver:

Diversity mode: The receiver will compare with 2 rssi, selects the strongest signal output Ifthe signal changes rapidly, the image will be tearingand rolling.

MIX mode: Two signals are processed through complex circuits and algorithms, fuse the two signal into one, caused the more stable and clear image.

Multiple power supply:

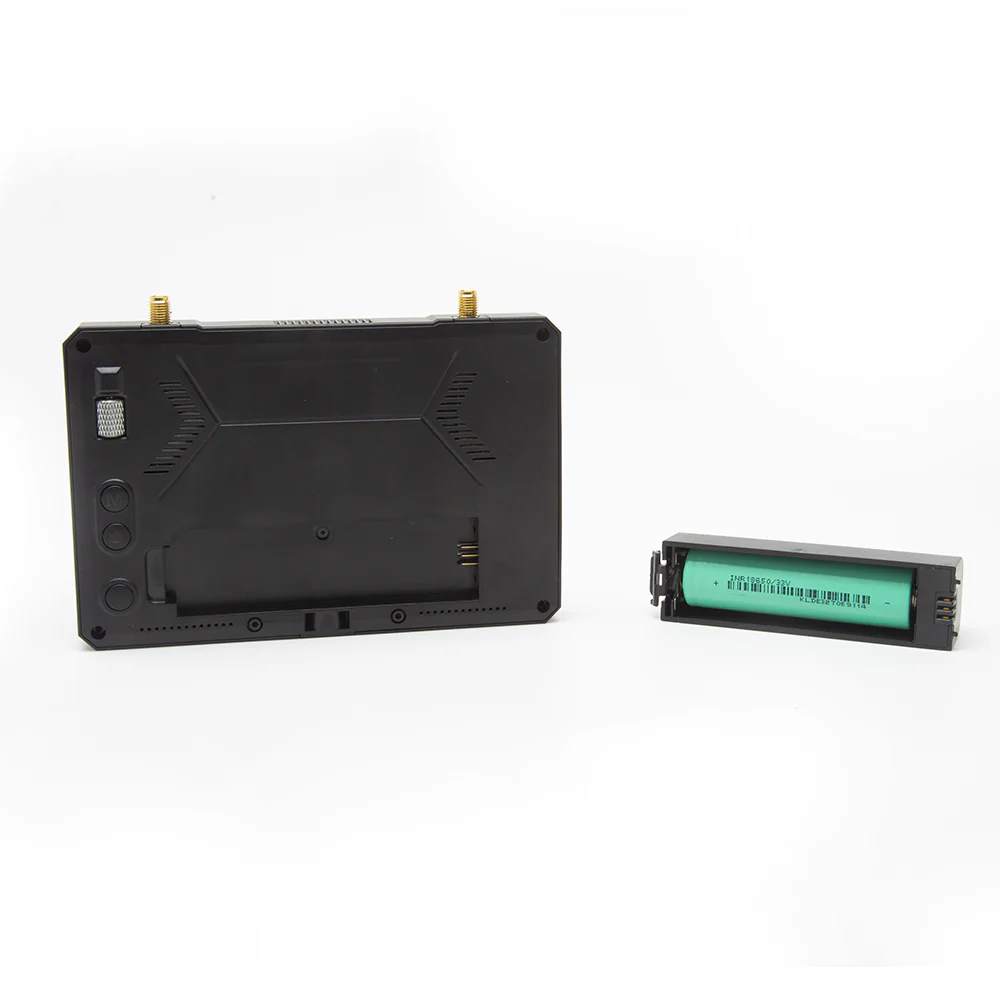

Support 18650 Lion battery replacement, Support 2-6S Lion input, SupportsType-C USB power supply.

Key Features
Display Size: 5"
Definition: 800x480px
Power: 2-6S DC, 18650 Liion, USB-C
DVR: 60fps MJPEG
Size: 135x88x16mm
Weight: 165g
Receiver: Steadyview

Package Includes
M5F Monitor *1
5.8GHz mushroom antennas *1
5.8GHz 8dbi RX antenna *1
Video/Audio Cable *1
USB-C Cable *1
XT60-DC5.5*2.1 Power Cable *1
User Manual *1
